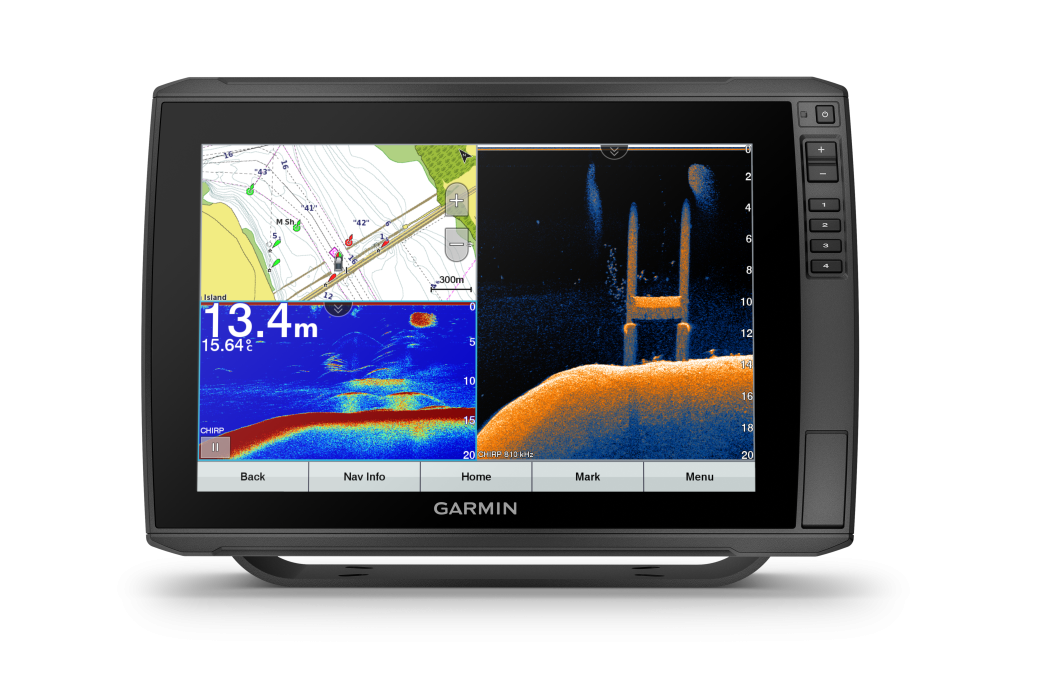

Sonar Garmin ECHOMAP ULTRA 122SV

Sonar Garmin ECHOMAP ULTRA 122SV . Equipped with everything you need for fishing in our waters. The fish finder is available in 3 configurations: display only, with UHD GT-54 transducer, and since the end of 2020, also with UHD GT-56 transducer.

This device enhances the already effective Garmin EchoMap PLUS series, but it comes with many improvements, essentially making it a new model in the EchoMap series.
The main differences include the fact that, following the advancement in fishing electronics, Garmin has equipped this product with expanded sonar network capabilities by integrating two Garmin Network Ethernet ports. This allows the sonar network to connect both essential transducers and to exchange data between devices anywhere on the boat.

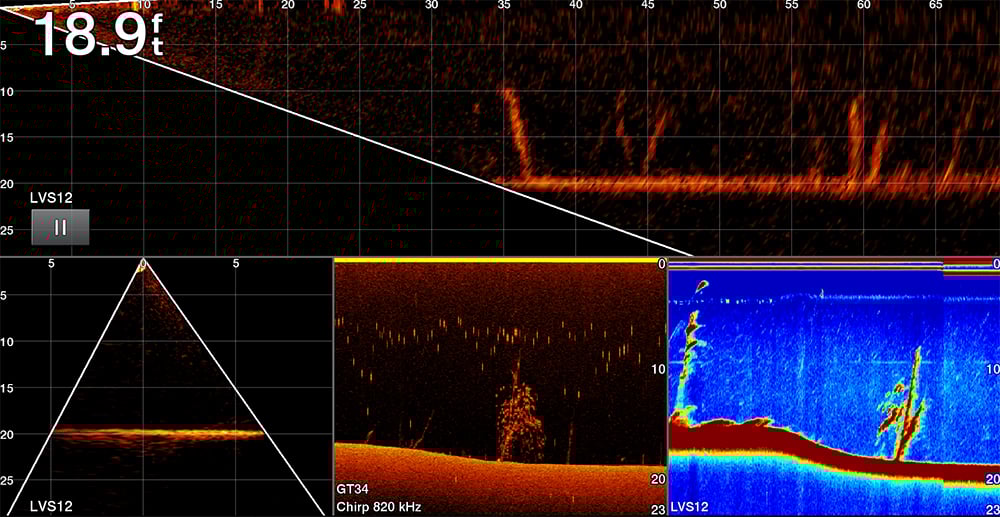

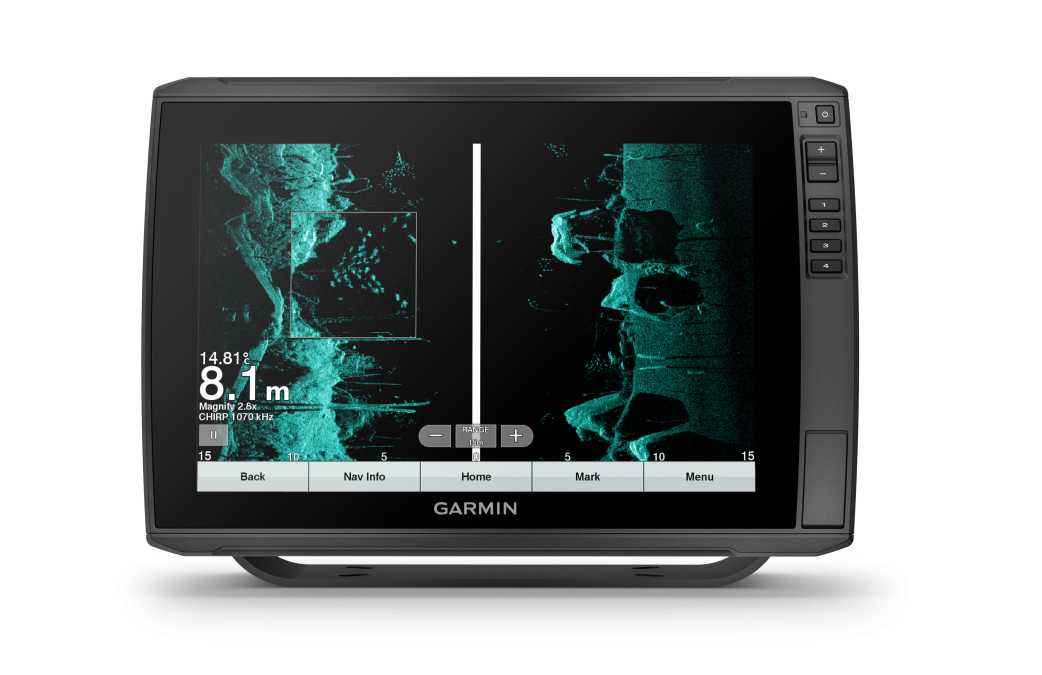

A significant new feature is that the EchoMap Ultra fish finder includes the latest Garmin sonar technology – UHD (Ultra High Definition) side and down imaging. Additionally, this fish finder can be connected to the Panoptix LiveScope LVS12 transducer for live imaging via a standard 12-pin transducer connector, without needing additional black boxes or extra wiring.

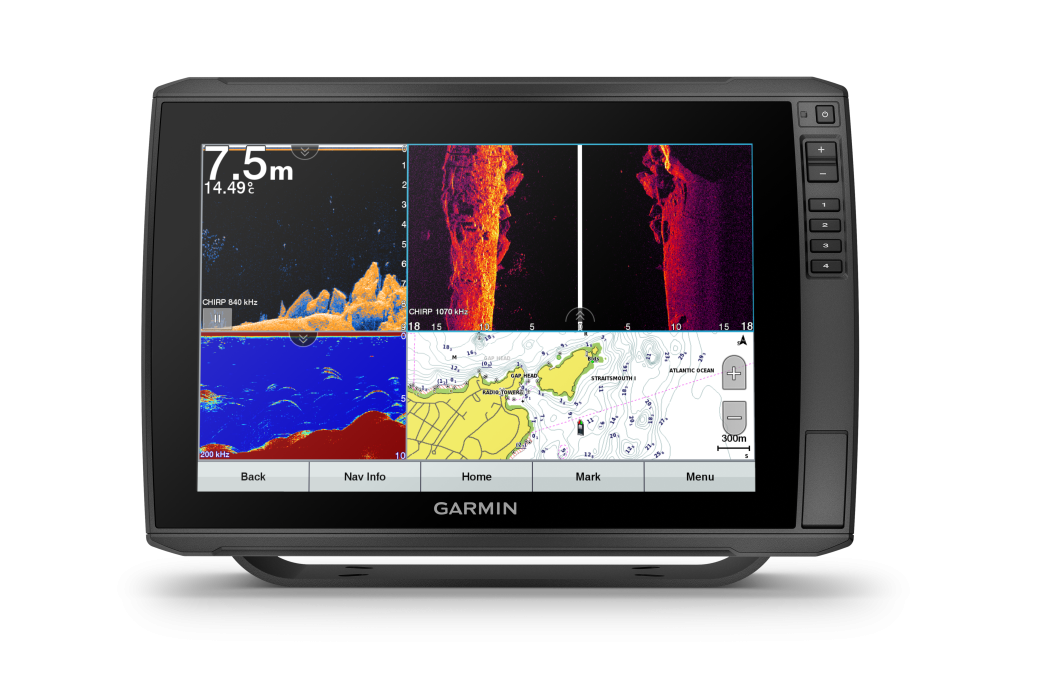

The screen resolution meets HD quality and fully matches the resolution of current sonar transducers. The image will be high-quality and clear down to the finest details.
The 'with transducer' package includes the GT54UHD-TM transducer, which is the most advanced transducer currently available, incorporating all beams – 2D, down imaging, and side imaging for operation at various but not all possible frequencies supported by this fish finder. For specific needs, we recommend consulting about the fish finder’s compatibility with other Garmin transducers. The fish finder supports all Panoptix™ series transducers

The built-in Wi-Fi allows you to connect the fish finder to a smartphone and operate through the Active Captain app – downloading maps, updates, and more.
The fish finder interface is based on a touchscreen, with additional physical button support. Three buttons are dedicated to shortcuts for frequently used views.

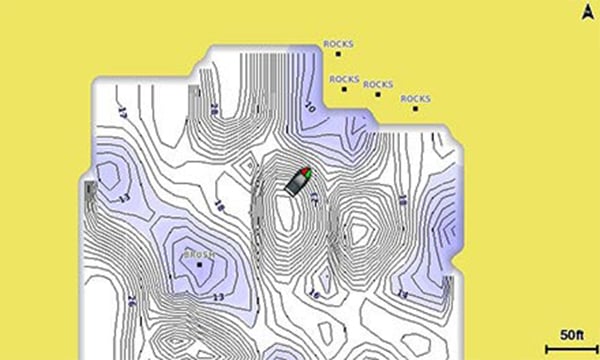

The fish finder supports Quickdraw Community on Garmin Connect, which provides ability to map the waters of interest yourself and share data on the social network.
ā.

Fish Finder Garmin ECHOMAP ULTRA 122SV, Technical Specifications:

• Dimensions: 13.4" x 9.0" x 3.9" (341 x 229 x 98 mm)
• Weight: 5.5 lbs (2.5 kg)
• Waterproof Rating: IPX7
• Screen Type: WXGA display
• Screen Size: 10.3” x 6.4” (26.1 cm x 16.3 cm); 12.1" diagonal (30.7 cm diagonal)
• Screen Resolution: 1280 x 800 pixels
• Power Consumption: 26 W / 2.2 A
• Antenna: Built-in or connectable via NMEA2000

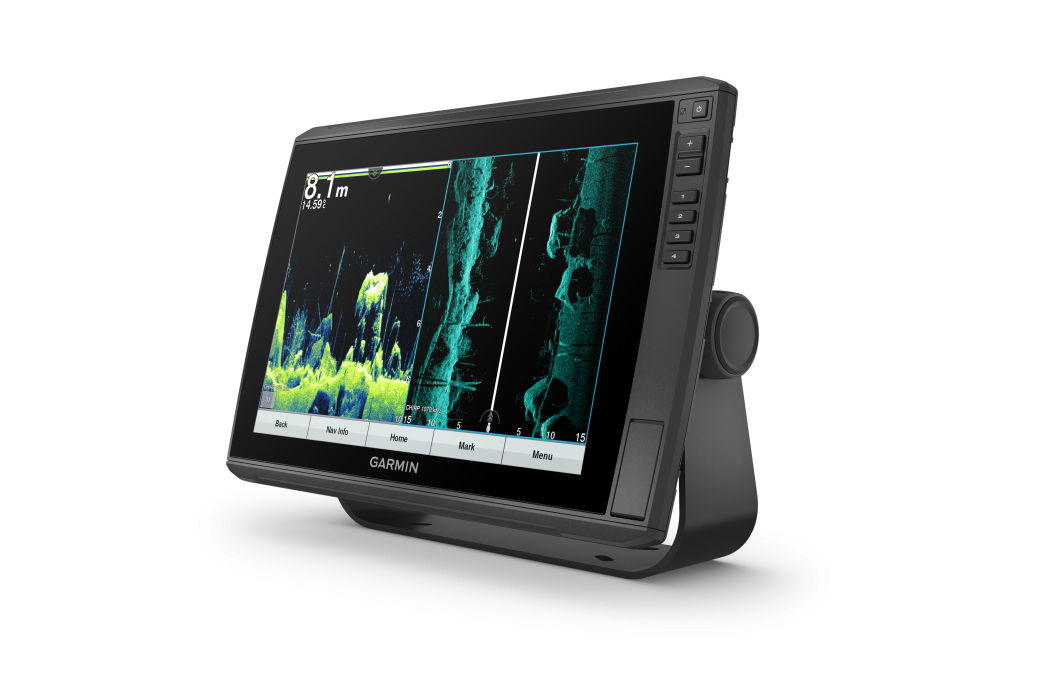

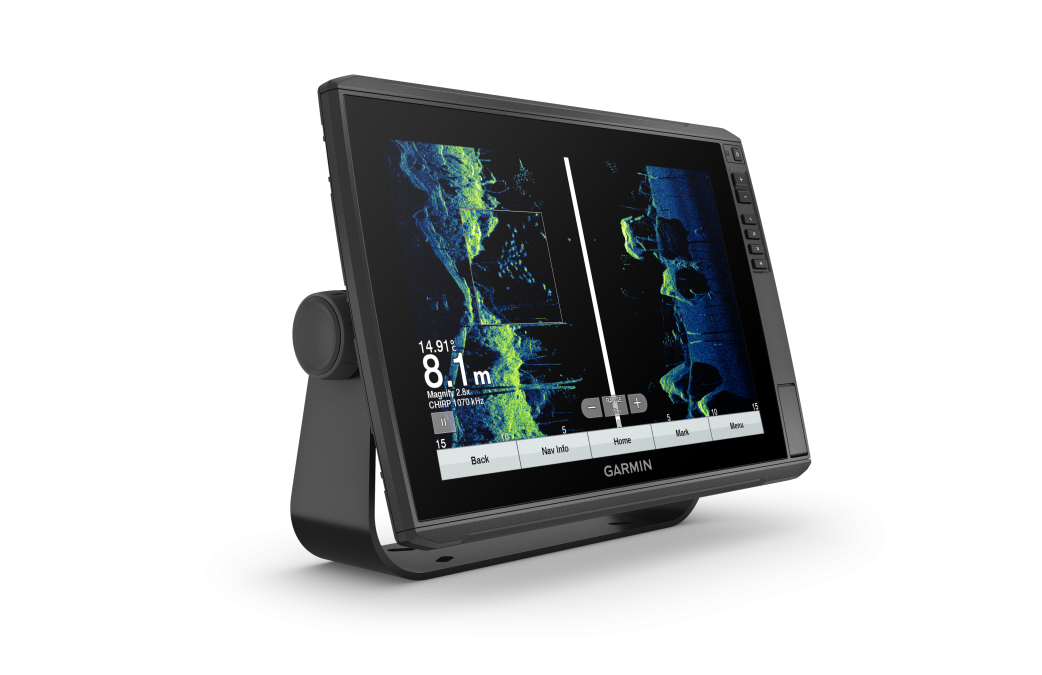

• Mounting Options: On a bracket or flush mount
• GPS Receiver: 10 Hz
• Garmin Marine Network™ and Network Ports: 2 (large connector)

Maps and Memory:

• External Memory Support: 2 microSD™ cards up to 32 GB
• Waypoints: 5,000
• Routes: 100
• Tracklog: 50,000 points; 50 routes
• Base Map: None

Other Features:

• Tide and Current: Yes
• Garmin Sonar Compatibility: Yes
• AIS Support (view other ships' positions): Yes
• DSC Support (position data from DSC-enabled VHF radio): Yes
• FUSION-Link™ Radio Support: Yes

Fish Finder Specifications:

• Dual-Frequency Sonar Support (50/200 kHz): Yes, with compatible transducer
• Dual-Beam Sonar Support (77/200 kHz): Yes
• Traditional CHIRP (medium, high frequencies): 150-240 kHz
• ClearVü Chirp: 455 kHz / Ultra 800 kHz
• SideVü Chirp: 1200 kHz
• Sonar Power: 600 W (RMS) / 4,000 W (peak to peak)
• CHIRP Sonar Technology: Yes, built-in
• ClearVü (down imaging): Yes
• SideVü (side imaging): Yes
• Maximum Depth: 766 m @ 77 kHz (freshwater), 366 m @ 77 kHz (saltwater), depending on water conditions
• Bottom Reference Point: Yes
• Water Temperature and Graph: Yes
• Sonar Recording: Yes
• Sonar History: Yes

Connections:

• NMEA 2000® Support: Yes
• Transducer Connector (pins): 12
• NMEA 0183 Input: 1
• NMEA 0183 Output: 1
• Video Input Port: None
• Video Output Port: None
• Wireless Connectivity: Yes

More information on the manufacturer’s website.
